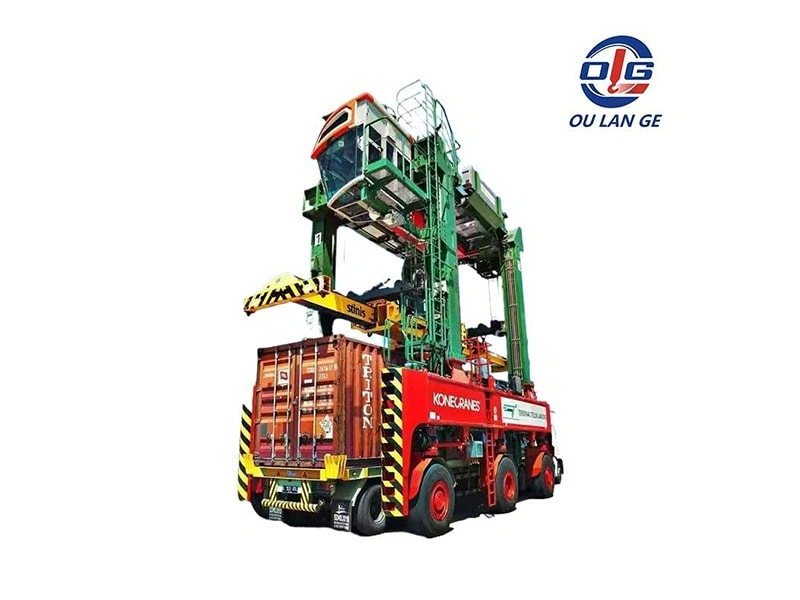

A Container Straddle Carrier is a highly efficient piece of port handling equipment designed for lifting, transporting, and stacking ISO containers within container terminals, ports, and intermodal yards. By straddling the container from above, it enables direct handling without the need for additional lifting machinery, significantly improving operational efficiency.
A Container Straddle Carrier is a highly efficient piece of port handling equipment designed for lifting, transporting, and stacking ISO containers within container terminals, ports, and intermodal yards. By straddling the container from above, it enables direct handling without the need for additional lifting machinery, significantly improving operational efficiency.
Compared with traditional container handling equipment, a Straddle Carrier offers superior mobility, flexibility, and fast cycle times. It is especially suitable for high-throughput container terminals where quick turnaround and optimized yard operations are critical. Operators can easily move containers between quay cranes, storage yards, and trucks, reducing congestion and improving overall terminal productivity.
As global trade continues to grow, the Container Straddle Carrier remains a key solution in modern port terminal operations, playing a vital role in improving container flow efficiency and maximizing yard space utilization.
● Small turning radius: can travel in the narrow aisle space.
● Wide wheel surface and high elastic coating steel, low requirements for road surface.
● Driver's room and wireless remote control for real-time operation.
● Hydraulic hand lever: reducing breakdown, easy for operation and maintenance.
| Project Name | Unit | Parameter value |
|---|---|---|
| Lifting capacity | t | 40.5t under the lifting gear |
| Span | m | 30 |
| Lifting Height | m | 16 |
| Working system | A6(intermediate) | |
| Load and unload of goods | 20', 40' containers | |
| Speed | ||
| Hoisting | m/min | 0~10 |
| Crab travelling | m/min | 3.4~34 |
| Trolley travelling | m/min | 2.9~29 |
| Motor | ||
| Hoisting | Type/Kw | YZP280M-8/2×55 |
| Crab travelling | Type/Kw | YZP180L-8/2×11 |
| Trolley travelling | Type/Kw | YZP160L-6/4×11 |
| Weight | ||
| Crab | t | 52 |
| Total Weight | t | 253 |
| Max.Wheel load | KN | 295 |
| Steel track recommended | P43 | |
| 3-phase A.C. 50Hz 380V | ||
We are an integrated industrial and trade enterprises. We have our own R&D team, factory and marketing department.
Our Crane can design and manufacture base on FEM, ISO EN, GB standard.
All our processes strictly adhere to ISO-9001 procedures, which include Material Traceability, ISO WPQR and welder certificate, Measuring Device Calibration, NDT for the welding, and full assembling and load testing before delivery.
We accept T/T bank transfer, Paypal.
We suggest you to recruit a crane service team in local to install the crane base on our Installation Guideline and User manual. If cannot, we can send engineer to your factory to guide you do the installation with extra charge, and the transportation, accommodation, translator shall be covered by your side also.
