Lattice-type Electric-hoist Gantry Crane

SEARCH PRODUCTS

PRODUCTS CATALOG

36-MH型电动葫芦门式起重机(桁架式)
36-MH型电动葫芦门式起重机(桁架式)

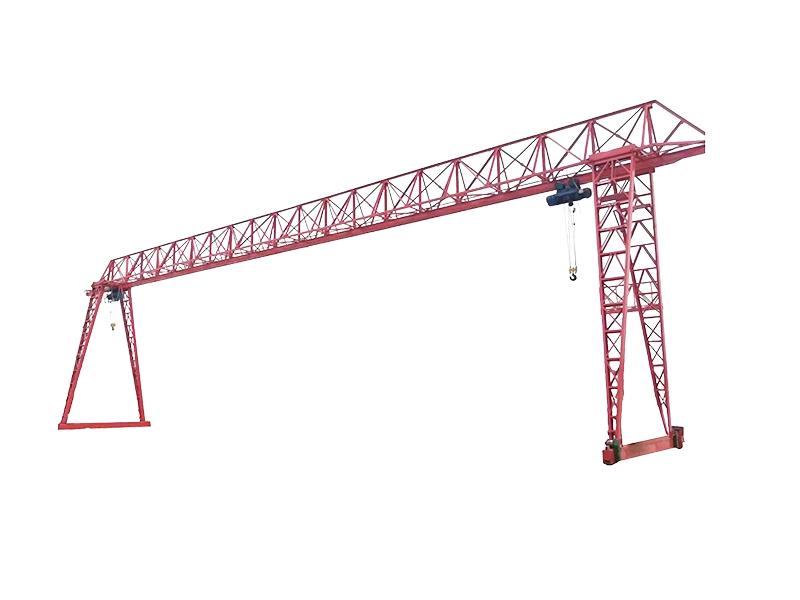

Lattice-type Electric-hoist Gantry Crane

MH Model Electric hoist gantry Crane is used together with CD MD Model electric hoists.It is a track travelling small and medium-sized crane.Its proper lifting weight is 3to 16tons.proper span is 12to 30 meters its proper working temperature is-20℃to40℃.
This product is a regular crane widely used at open ground and warehouses to load.unload or grab materials.It has 2controlling methods.namely ground controlling and room controlling.

Technical Specifications

Liting capacity t 3
Span m 12 16 20 24
Lifting Height m 6,9
Travelling  mechanism Travelling Speed Ground m/min 20
Controling Room 20       30      45
Motor Ground ZDY,(D)21/-4/0.8×2 ZDY,(D)22/-4/1.5×2
Controling Room ZDR100-4(D)1.5×2 ZDR112L-4/2.1×2
Reducer LD
Wheel diameter mm φ270 φ 400
Eleet rie  hoist Type No. CD, MD,
Lifting speed m/min 8 0.8/8
Travelling speed m/min 20
Motor Lifting ZD,32-4/4.5 ZDS,0.4/4.5
Travelling ZDY,12-4/0.4
working system A5
Steel track Recommended P24,P38
Power source 380V 50Hz
The Crane Weight Ground t 6.4/7.5 7.4/8.5 9.7/10.8 11.2/12.3
Controling Room t 7.2/8.7 8.2/9.7 10.5/12 12/13.5
Max.Wheel Load KN 37/42 40/46 44/50 48/54
Basic Dimensions L 3000 4000 5000 6000
L₂ 3000 4000 5000 6000
H₁ 1120
H₂ 1100 1250 1350 1500
H₂ 8265/11265 8285/11465 8485/11665 8486/10665
B 4500/5500 5500/6500
B 5000/6000 6000/7000
B₂ 5400/6400 6500/7500
B₃ 1500



Lifting eapacity t 5
Span m 12 16 20 24 30
Lifting Height m 6,9 9
Travelling  mechanism Travelling Speed Ground m/min 20
Controling Room 20       30          30
Motor Ground ZDY 22-4/1.5×2 ZDY132M2-6/4×2
Controling Room ZDR 12-4/1.5×2
Reducer LD ZSC400
Wheel diameter mm φ270 φ400
Eleet rie  hoist Type No . CD₁    MD,
Lifting speed m/min 8 0.8/8
Travelling speed m/min 20
Motor Lifting ZD,41-4/7.5         ZDS,0.8/7.5
Travelling ZDY,21-4/0.8
working system A5
Steel track Recommended P24 P38
Power souree 380V 50Hz
The Crane Weight Ground t 7.3/8.5 8.3/9.6 11.7/13 15/16.7
Controling Room t 8.1/9.7 9.1/10.8 12.5/14.2 15.8/17.9 20.7
Max.Wheel Load KN 54/59 62/67 70/75 78/83 96
Basic Dimensions L₁ 3000 4000 5000 6000 7500
L₂
H₁ 1160
H₂ 1150 1250 1450 1600 1700
H₃ 8660/11660 8660/11660 8760/11760 8760/11760 11860
B 4500/5500 5500/6500
B₁ 5500/6500 6500/7500
B₂ 6000/7000 7100/8100
B₃ 1500



Lifting eapacity t 5
Span m 12 16 20 24 30
Lifting Height m 6,9 9
Travelling  mechanism Travelling Speed Ground m/min 20
Controling Room 20       30          30
Motor Ground ZDY 22-4/1.5×2 ZDY132M2-6/4×2
Controling Room ZDR 12-4/1.5×2
Reducer LD ZSC400
Wheel diameter mm φ270 φ400
Eleet rie  hoist Type No . CD₁    MD,
Lifting speed m/min 8 0.8/8
Travelling speed m/min 20
Motor Lifting ZD,41-4/7.5         ZDS,0.8/7.5
Travelling ZDY,21-4/0.8
working system A5
Steel track Recommended P24 P38
Power souree 380V 50Hz
The Crane Weight Ground t 7.3/8.5 8.3/9.6 11.7/13 15/16.7
Controling Room t 8.1/9.7 9.1/10.8 12.5/14.2 15.8/17.9 20.7
Max.Wheel Load KN 54/59 62/67 70/75 78/83 96
Basic Dimensions L₁ 3000 4000 5000 6000 7500
L₂
H₁ 1160
H₂ 1150 1250 1450 1600 1700
H₃ 8660/11660 8660/11660 8760/11760 8760/11760 11860
B 4500/5500 5500/6500
B₁ 5500/6500 6500/7500
B₂ 6000/7000 7100/8100
B₃ 1500



Lifting eapacity t 16
Span m 12 16 20 24 30
Lifting Height m 6,9 9
Travelling  mechanism Travelling Speed Ground m/min 20
Controling Room 30                             40
Motor Ground YZR132M2-6/4×2 YZR160M1-6/6.3×2 YZR160M2-6/8.5×2
Controling Room
Redueer ZSC400 ZSC(A)600
Wheel diameter mm φ400 φ500
Eleet rie  hoist Type No. CD₁、MD,
Lifting speed m/min 3.5、0.35/3.5
Travelling speed m/min 20
Motor Lifting ZD,51-4/13
Travelling ZDY,21-4/0.8×2
working system A5
Steel track Recommended P38 P43
Power source 380V   50Hz
The Crane Weight Ground t 14/15.7 16.1/17.9 20.2/22.1 21.2/23 27.5
Controling Room t 14.9/17 17/19.2 21.1/23.4 22.11 28.3
Max.Wheel Load KN 143/150 152/159 165/174 169/176 180/190
Basie Dimensions L 3000 4000 5000 6000
L₂
H, 2300
H₂ 1700 2000 2100 2200 2500
H₂ 10100/13100 10400/13400 10400/13400 10600/13600 10700/13700
B 5000/6000 6500/7500
B. 6500/7000 7500/8500
B: 7000/7500 8200/9200
B₂ 1600 1700

MORE RELATED QUESTIONS

  • Are you Manufacturer or Trading Company?

    We are an integrated industrial and trade enterprises. We have our own R&D team, factory and marketing department.

  • Which standard of your crane and crane components apply to?

    Our Crane can design and manufacture base on FEM, ISO EN, GB standard.

  • How do you ensure your product quality?

    All our processes strictly adhere to ISO-9001 procedures, which include Material Traceability, ISO WPQR and welder certificate, Measuring Device Calibration, NDT for the welding, and full assembling and load testing before delivery.

  • How can I make payment?

    We accept T/T bank transfer, Paypal.

  • How can I assembly the cranes in my factory?

    We suggest you to recruit a crane service team in local to install the crane base on our Installation Guideline and User manual. If cannot, we can send engineer to your factory to guide you do the installation with extra charge, and the transportation, accommodation, translator shall be covered by your side also.
