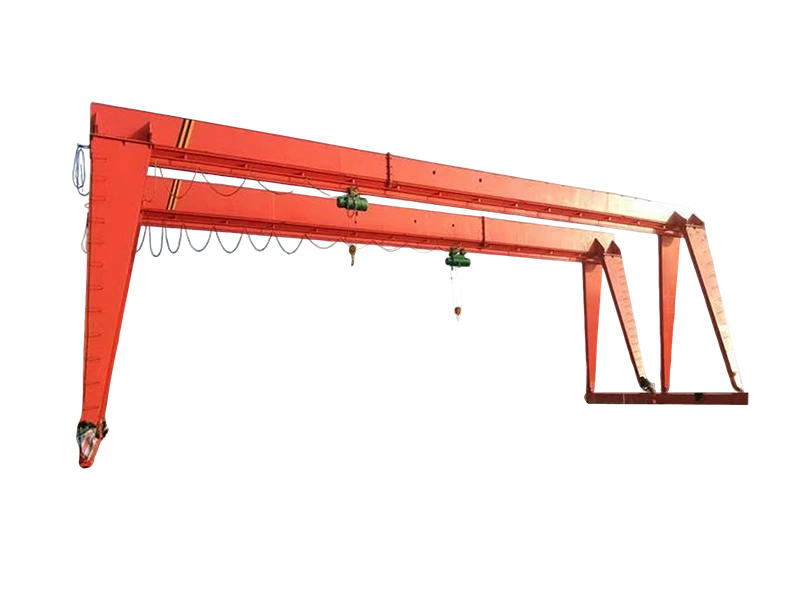

Box Type Electric-hoist Gantry Crane

MH Model Electric hoist gantry Crane is used together with CD MD Model electric hoists.It is a track travelling small and medium-sized crane.Its proper lifting weight is 3to 16tons.proper span is 12to 30meters its proper working temperature is-20℃ to+40℃.
This product is a regular crane widely used at open ground and warehouses to load.unload or grab materials.It has 2controlling methods.namely ground controlling and room controlling.

Technical Specifications

Lifting Capacity 3
Span m 12 16 20 24
Lifting Height m 6/9
Travelling  mechanism Travelling Speed Ground m/min 20
Controling Room 20             30               45
Motor Ground ZDY,(D)21-4/0.8×2 ZDY,(D)22-4/1.5×2
Controling Room ZDY 21-4/0.8×2 ZDR100-4(D)1.5×2
Reducer LD Drive unit
Wheel diameter mm φ 270 φ400
Eleet rie  hoist Type CD₁    MD₁
Lifting speed m/min 8 0.8/8
Travelling speed m/min 20
Motor Lifting ZD,41-4/4.5          ZDS,0.4/4.5
Travelling ZDY,12-4/0.4
working system A5
Steel track Recommended P34   P38
Power source 380V 50Hz
The Crane Weight Ground t 7.4/8.7 8.6/9.9 11.3/12.6 13/14.3
Controling Room t 8.2/9.9 9.4/11.1 12.1/13.8 13.8/15.5
Max Wheel Load KN 37/42 40/46 44/50 48/54
Basic Dimensions L₁ 3000 4000 5000 6000
L₂ 3000 4000 5000 6000
H₁ 1120
H₂ 650 700 800 900
H₃ 7635/10635 7685/10685 7785/10785 7885/10885
B 4500/5500 5500/6500
B₁ 5000/6000 6000/7000
B₂ 5400/6400 6500/7500
B₃ 1500



Lifting eapacity t 5
Span m 12 16 20 24 30
Lifting Height m 6/9 9
Operating Mechanism   Travelling Speed Ground   m/min 20
Controling Room 20              30              40
Motor Ground   ZDY22-4/1.5×2   YZR132M2-6/3.7×2
Controling Room   ZDR 12-4/1.5×2
Reducer   LD ZSC400
Wheel diameter mm φ 270 φ400
Electric hoist Type No.   CD,       MD,
Lifting speed   m/min 8  0.8/8
Travelling speed m/min 20
Motor Liting   ZD,41-4/7.5          ZDS,0.8/7.5
Travelling   ZDY,21-4/0.8
working system     A5
Steel track Recommended   P24 P38
Power souree   380V 50Hz
The Crane Weight Ground   t 8.4/9.8 9.6/11.2 13.6/15.2 18.3/20.4
Controling Room t 9.2/11 10.4/12.2 14.4/16.4 19.1/21.6 25.1
Max.Wheel Load   KN 54/59 62/67 70/75 78/83 96
Basie Dimensions   L,     3000   4000   5000   6000   7500
L₂
  H,     1160
  H₂   800 900 1000   1150   1300
  H₂   7960/10960 8060/11060 8160/11160 8310/11310   11460
B   4500/5500 5500/6500
B,   5500/6500 6500/7500
B,   6000/7000 7100/8100
B₂   1500



Lifting eapacity t 10
Span m 12 16 20 24 30
Lifting Height m 6/9 9
Traveling  meehan ism Travelling Speed Ground m/min 20
Controling Room 30                      40
Motor Ground YZR132M2-6/4×2 YZR160M1-6/6.3×2
Controling Room YZR160M1-6/6.3×2 YZR160M2-6/8.5×2
Reducer ZSC400 ZSC(A)600
Wheel diameter mm φ400 φ500
Eleet ric  hoist Type No. CD,      MD,
Lifting speed m/min 7  0.7/7
Travelling speed m/min 20
Motor Lifting ZD,51-4/13          ZDS,1.5/13
Travelling ZDY,21-4/0.8×2
working system A5
Steel track Recommended P38 P43
Power souree 380V 50Hz
The Crane Weight Ground t 14.8/16.1 16.7/18.7 19.6/21.6 24.4/26.6 30.1
Controling Room t 14.8/17.3 17.5/19.9 20.4/22.9 25.2/27.9 31.4
Max.Wheel Load KN 97/102 105/110 113/118 121/126 149
Basic Dimensions L, 3000 4000 5000 6000 7500
L₂
H, 1350
H₂ 1000 1100 1200 1300 1600
H₂ 8350/11350 8450/11450 8550/11550 8650/11650 12250
B 4500/5500 5500/6500
B. 5500/6500 6500/7500
B₂ 6000/7100 7100/8100
B₂ 1600



Lifting capacity t 16
S p a n m 12 16 20 24 30
Lifting Height m 6/9 9
Traveling  meehan ism Travelling Speed Ground m/min 20
Controling Room 30                               40
Motor Ground YZR132M₂6/4×2 YZR160M1-6/6.3×2
Controling Room YZR160M2-6/8.5×2
Reducer ZSC400 ZSC(A)600
Wheel diameter mm φ400 φ500
Eleet ric  hoist Type No. CD₁ 、MD₁
Lifting speed m/min 3.5、3.5/0.35
Travelling speed m/min 20
Motor Lifting ZDS,1.5/13
Travelling ZDY,21-4/0.8×2
working system A5
Steel track Recommended P38 P43
Power souree 380V   50Hz
The Crane Weight Ground t 16.2/18.2 18.6/20.7 23.3/25.5 25.9/28.1 35
Controling Room t 17.1/19.5 19.5/22 24.2/26.8 26.8/29.4 33.7
Max Wheel Load KN 143/150 152/159 165/174 169/176 180/190
Basic Dimensions L 3000 4000 5000 6000
L₂
H 2300
H₂ 1100 1200 1300 1400 1600
H₃ 9500/12500 9600/12600 9700/12700 9800/12800 9950/9700
B 5500/6000 6500/7500
B, 6500/7000 7500/8500
B₂ 7000/7500 8200/9200
B₃ 1600 1700
