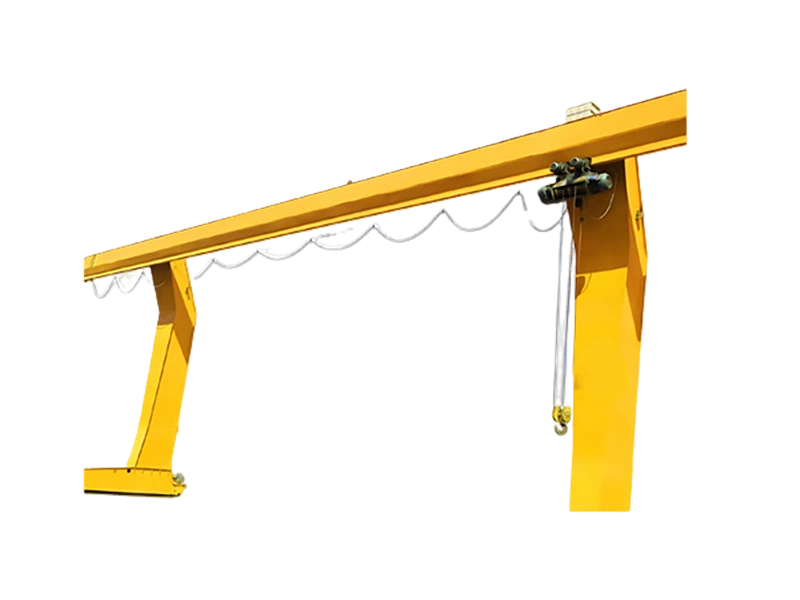

Single-girder With Hook Gantry Crane

It consists of four main parts,namely,the bridge structure,the travelling mechanism,the trolley and the electric equipment.The bridge is welded structure of box-type girder;individual drives are adopted for travelling mechanism on each end of the crane.All movements of the crane are controlled by the cabin. Either rigid shapes of steel (angles or tees)or flexible insulated cable shall be selected to be utilized as runway conductors and proposed in the order by the purchaser.Max and min value of environment temperature,the sort of power supply,the voltage and other data shall be proposed by user when filling the order form.

Applied the situation

Single beam gantry cranes with hook are available for general service,such as loading,unloading, lifting and transferring work in outdoor storage or railways.

Technical Specifications

Lifting capacity t 5 10
Span m 18 22 26 30 35 18 22 26 30 35
Lifting Height Main m 10 11 10 11
Aux 一
Working system A5(intermediate)
Speed Hoisting Main m/min 11.3 9.6
Aux —— 一
crab travelling 35.5 39.7
trolley travelling 46.2 40.1 39.6 40.1
Installed Power KW 31.8 40.8 39.5 48.5
Max.wheel Load KN 160 166 185 213 233 225 236 239 286 298
Steel track Recommended 43kg/m 43kg/m
Power source 3-phase A.C.50Hz 380V
Main Dimensions S1 mm 5000 7000 5000 7000
S2 5000 7000 5000 7000
L1 7012 8717 7012 9312
L2 6706 8717 7006 9006
L3 8912 10074 8912 11212
L4 675 745 745
H 12442 13889 13595 14595
H1 577 660 660
H2 9610 9530 10360 9950 10950
H3 10000 11000 10000 11000
H4 ————         一
H5 6947 6847 6797 7597 7397 7357 7257 7857 7757
B 8012 8650 8726 9226
BQ 6000 7000 7000 7500
B1 3800 4050 4100 4100 4300
B2 899 999 1149 1299 1050 1150 1350



Lifting capacity t 16/3.2 20/5
Span m 18 22 26 30 35 18 22 26 30 35
Lifting Height Main m 10 11 10 11
Aux 10.5                     11.5 10                         11
Working system A5(intermediate)
Hoisting Main 9.6 7.2
Aux 16.7 19.4
crab travelling 39.5 39.3
trolley travelling 40.1 47.1 40.1 47.1
Installed Power KW 71.3 82.3 76.8 87.8
Max.wheel Load KN 298 306 307 370 383 340 346 362 419 432
Steel track Recommended 43kg/m 43kg/m
Power source 3-phase A.C.50Hz 380V
Main Dimensions S1 mm 5000 7000 5000 7000
S2 5000 7000 5000 7000
L1 7812 10506 7906 10406
L2 7206 9212 7212 9212
L3 9712 12406 9806 12306
L4 745 745 888
H 13847 14845 13851 14851
H1 660 762 660 762
H2 9940 9780 10780 9950 10950
H3 10000 11000 10000 11000
H4 10500 11500 10000 11000
H5 7179 7077 6977 7677 7577 7070 6970 7570 7470
B 8752 9252 9502 9252 10002
BQ 7000 7500 7500 800
B1 4100 4350 4400 4400 4600 4650
B2 1150 1250 1350 1450 1250 1350 1550



Lifting capacity t 32/5 50/10 ※
Span m 18 22 26 30 35 18 22 26 30 ————
Lifting Height Main
Aux		 m 10 11 10 11
10.85 11.85 10 11
Working system A5(intermediate)
Speed Hoisting Main m/min 7.6 5.9
Aux 19.4 13.2
crab travelling 38.6 38.5
trolley travelling 48.2 47.9 39.7
Installed Power KW 108 116 150
Max.wheel Load KN 457 470 255 274 284 285 297 310 330 ——
Steel track Recommended QU70 QU70
Power source   3-phase  A.C.50Hz 380V
Main Dimensions S1 mm 5000 7000 5000 7000
S2 5000 7000 5000 7000
L1 8006 10006 8006 11000
L2 8006 10006 8006 11000
L3 9906 11906 9906 12900
L4 898 820 830
H 14380 14577 15186 14750 16536
H1 763 670 660
H2 10060 10257 10466 10550 11908
H3 10000 11000 10000 11000
H4 10850 11850 10000 11000
H5 7467 7667 7876 7453 8268
B 10006 11370 12050
BQ 8000 8500 8500
B1 5135 5280 5500
B2 1301 1651 2034

MORE RELATED QUESTIONS

  • Are you Manufacturer or Trading Company?

    We are an integrated industrial and trade enterprises. We have our own R&D team, factory and marketing department.

  • Which standard of your crane and crane components apply to?

    Our Crane can design and manufacture base on FEM, ISO EN, GB standard.

  • How do you ensure your product quality?

    All our processes strictly adhere to ISO-9001 procedures, which include Material Traceability, ISO WPQR and welder certificate, Measuring Device Calibration, NDT for the welding, and full assembling and load testing before delivery.

  • How can I make payment?

    We accept T/T bank transfer, Paypal.

  • How can I assembly the cranes in my factory?

    We suggest you to recruit a crane service team in local to install the crane base on our Installation Guideline and User manual. If cannot, we can send engineer to your factory to guide you do the installation with extra charge, and the transportation, accommodation, translator shall be covered by your side also.

faqs

RELATED PRODUCTS

Single-girder With Hook Gantry Crane
Single-girder With Hook Gantry Crane
Learn More

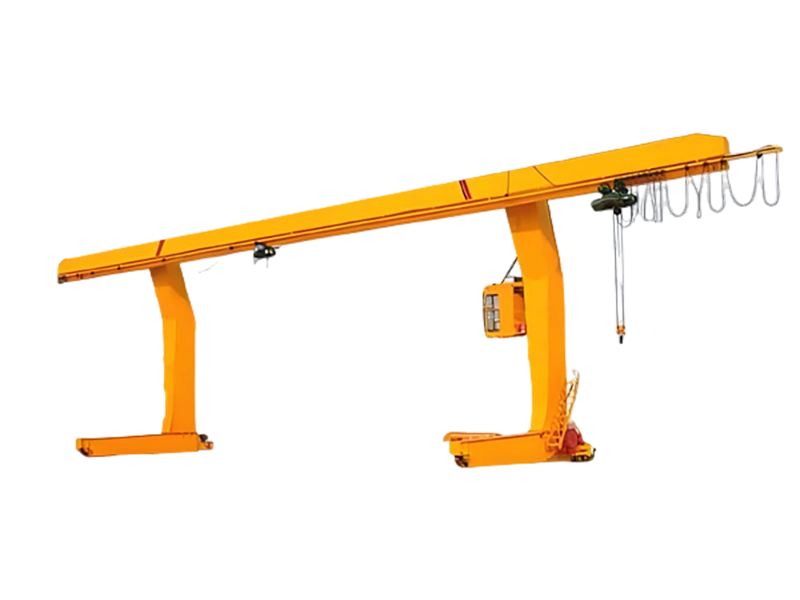

Industrial Single-girder Hook Gantry Crane
