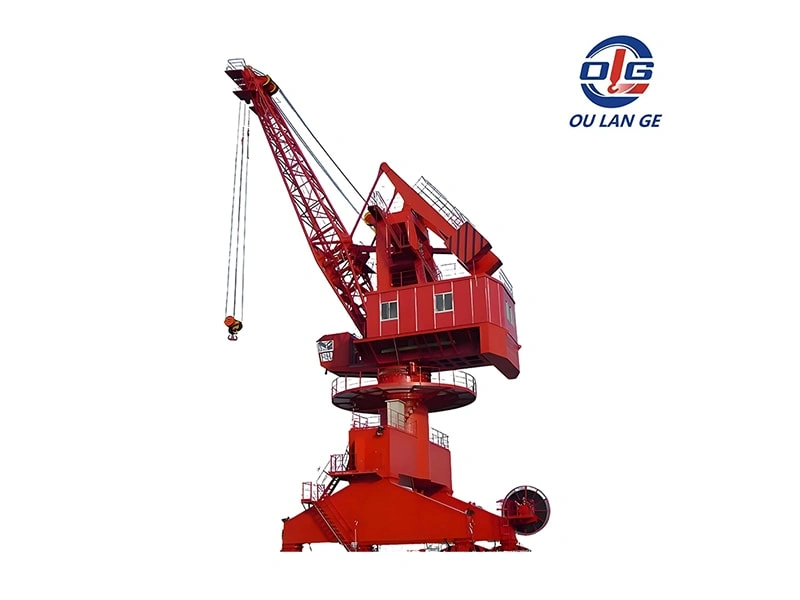

A Port Crane is a critical lifting solution for modern ports, terminals, and logistics hubs. Designed for heavy-duty cargo handling, OULANGE port cranes deliver high lifting capacity, operational stabilit to ensure safe, efficient, and continuous port operations.
A Port Crane is a critical lifting solution for modern ports, terminals, and logistics hubs. Designed for heavy-duty cargo handling, OULANGE port cranes deliver high lifting capacity, operational stabilit to ensure safe, efficient, and continuous port operations.
Widely used for container handling, bulk cargo loading, and heavy equipment lifting, the Port Crane significantly improves productivity while reducing operating and maintenance costs.
Ⅰ. High Lifting Capacity
Lifting capacity from 10 tons up to 200+ tons, customizable for various port applications
Ⅱ. Robust & Durable Structure
High-strength steel structure designed for marine environments, resistant to corrosion, humidity, and strong winds
Ⅲ. Energy-Efficient Design
Electric or diesel-electric hybrid drive systems to reduce energy consumption and emissions
Ⅳ. Customized Solutions
Tailor-made designs based on berth conditions, vessel types, and operational requirements
| Produet Speeifieation | 1030 | |||
| Lifting Capaeity | t | 10 | ||
| Group Classifieation of Complete Machines | A7 | |||
| Lifting Height | Above Rail Top | m | Grab 16 | Hook 25 |
| Below Rail Top | m | Hook 15 | ||
| Working Radius | Max. | m | 30 | |
| Min. | m | 8.5 | ||
| Lifting Meehanism | Group Classifieation | M7 | ||
| Lifting Speed | m/min | 60 | ||
| Luffing Mechanism | Group Classifieation | M6 | ||
| Luffing Speed | m/min | 52 | ||
| Slewing Mechanism | Group Classifieation | M6 | ||
| Slewing Speed | r/min | 1.51 | ||
| Traveling Mechanism | Group Classification | M4 | ||
| Traveling Speed | m/min | 27 | ||
| Power Souree | 3-phase A.C.50Hz 380V | |||
| Track Gauge/Wheel Base | m | 10.5/10.5 | ||
| Max.Slewing Radius | m | 30 | ||
| Tail Slewing Radius | m | ~7.8 | ||
| In-serviee Maximum Wind Pressure | N/m | 250 | ||
| 0ut-ofservice Maximum Wind Pressure | N/m | 1000 | ||
| In-serviee Maximum Wheel Pressure | KN | 220 | ||
| Steel Traek Reeommended | P50 | |||
| Installed Capaeity | kw | 350 | ||
We have extensive experience in port crane manufacturing and projects.
One-stop service: design, manufacturing, installation assistance, and commissioning assistance.
Reliable after-sales service and global technical support.
We are an integrated industrial and trade enterprises. We have our own R&D team, factory and marketing department.
Our Crane can design and manufacture base on FEM, ISO EN, GB standard.
All our processes strictly adhere to ISO-9001 procedures, which include Material Traceability, ISO WPQR and welder certificate, Measuring Device Calibration, NDT for the welding, and full assembling and load testing before delivery.
We accept T/T bank transfer, Paypal.
We suggest you to recruit a crane service team in local to install the crane base on our Installation Guideline and User manual. If cannot, we can send engineer to your factory to guide you do the installation with extra charge, and the transportation, accommodation, translator shall be covered by your side also.
