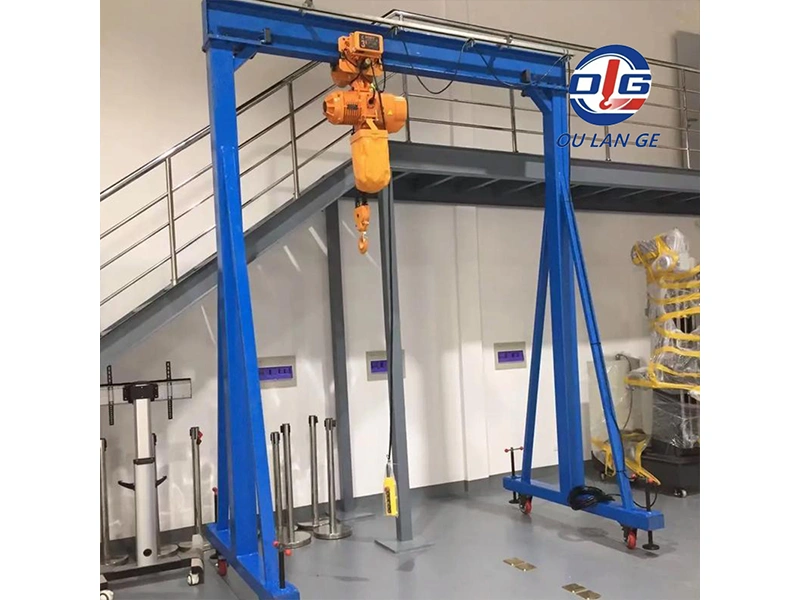

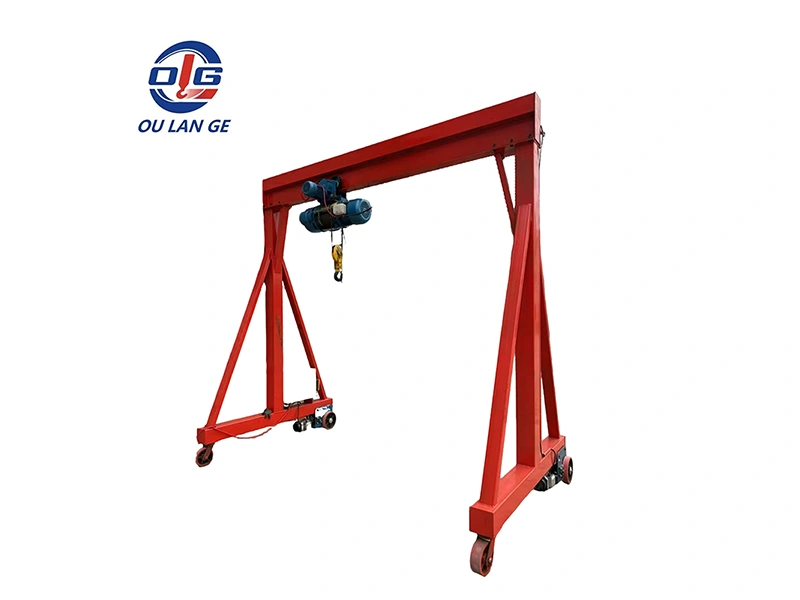

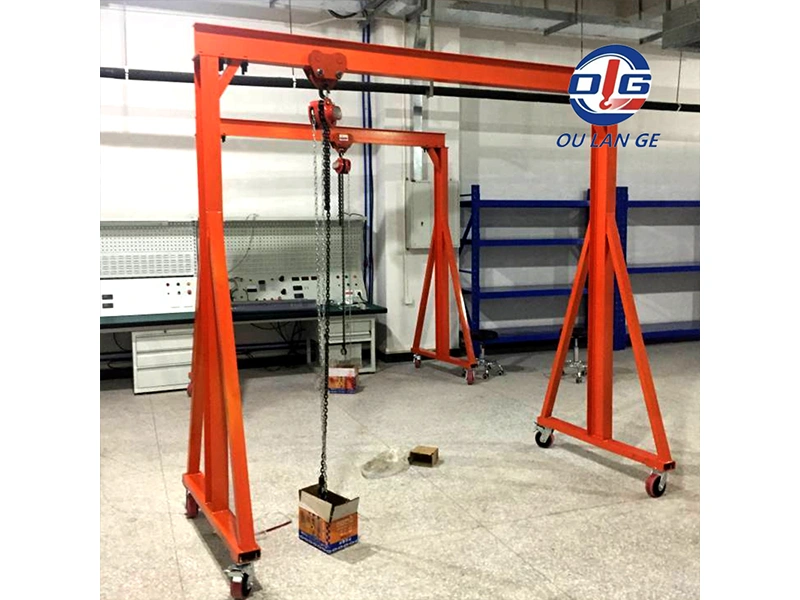

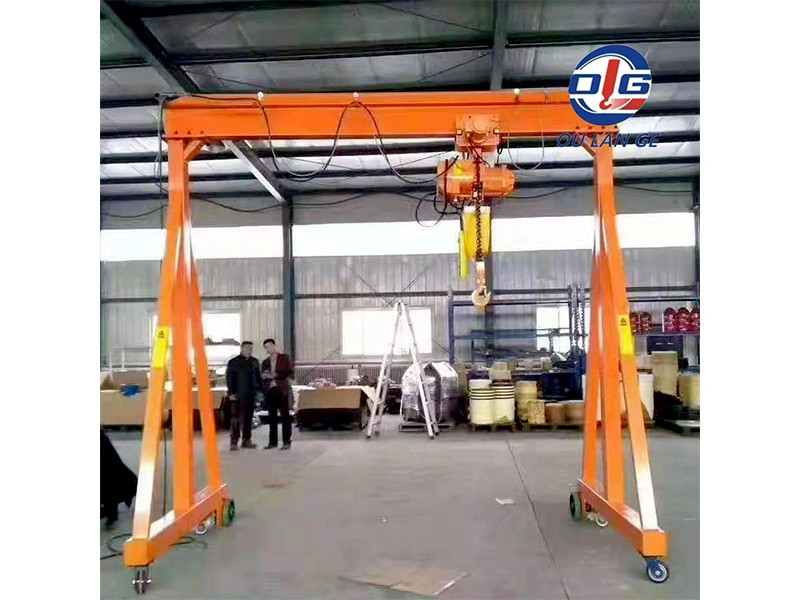

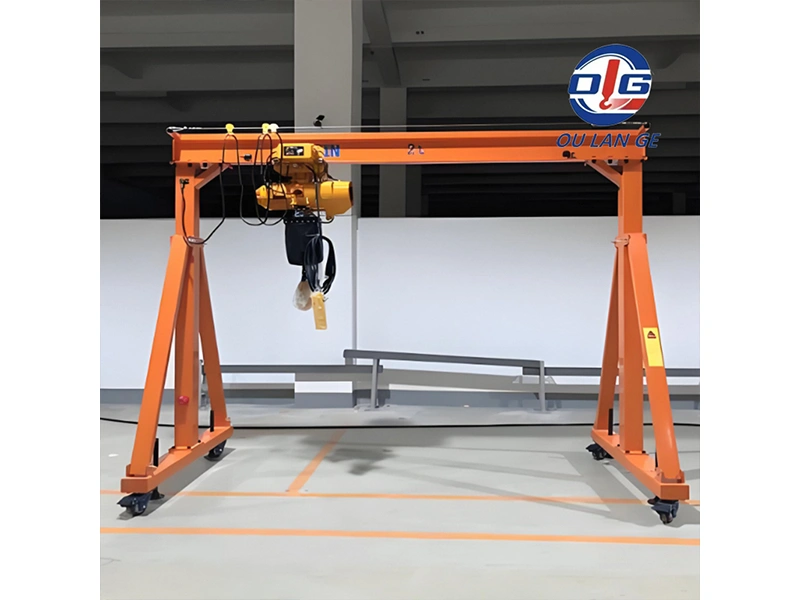

The Mini Trackless Movable Gantry Crane is a compact and flexible lifting solution designed for workshops, warehouses, maintenance areas, and production lines where fixed rails or permanent foundations are not available.
The Mini Trackless Movable Gantry Crane is a compact and flexible lifting solution designed for workshops, warehouses, maintenance areas, and production lines where fixed rails or permanent foundations are not available.
Unlike traditional gantry cranes, this trackless movable gantry crane can be easily moved and positioned by operators, making it ideal for light-duty to medium-duty lifting tasks with high mobility and low installation cost.
Trackless & Movable Design
No rails or floor foundation required, allowing flexible movement across flat surfaces
Compact & Space-Saving Structure
Ideal for limited working spaces and indoor environments
Easy Installation & Operation
Quick assembly and simple operation reduce setup time and labor cost
High Mobility
Equipped with swivel or fixed wheels with brakes for safe positioning
Cost-Effective Lifting Solution
Lower investment compared with overhead cranes or fixed gantry cranes
| Type | Mobile Gantry Crane |
| Tonnage | 1T/2T/3T/5T/10T/12.5T/16T/20T/25T/30T/40T/50T Customized |
| Span | 1 meters to 40 meters |
| Lifting Height | 2 meters to 40 meters |
| Working Level | A1/A2/A3/A4/A5/A6/A7/A8 |
| Lifting Speed | 5/0.8 m/min double speed OR Customized |
| Trolley Running Speed | 0-20 m/min frequency conversion OR Customized |
| Cart Running Speed | 0-32 m/min frequency conversion OR Customized |
| Warranty Time | 18 MONTHS AFTER SHIPMENT |
| Lifting Motor | Squirrel cage 2-speed motor with Disc electromagnetic brake inside |
| Gear Motor | Hardened tooth gear for C.T.& L.T. |
| Surface Preparation Type | Shot Blasting Sa2.5 |
| Painting Type/Depth | E/120µm |
| Max./Min. Static Wheel Load | 62.9/11.8 kN |
| Control Method | Remote control |
| Industrial Voltage | 380V 50HZ 3P AC OR Customized |
| Working Temperature | -20~45ºC OR Customized |
| Application Area | Warehouses, Ports, Steel Plants, Power Stations |
Professional gantry crane manufacturer and exporter
Flexible customization for size, capacity, and mobility
Fast delivery and reliable after-sales service
We are an integrated industrial and trade enterprises. We have our own R&D team, factory and marketing department.
Our Crane can design and manufacture base on FEM, ISO EN, GB standard.
All our processes strictly adhere to ISO-9001 procedures, which include Material Traceability, ISO WPQR and welder certificate, Measuring Device Calibration, NDT for the welding, and full assembling and load testing before delivery.
We accept T/T bank transfer, Paypal.
We suggest you to recruit a crane service team in local to install the crane base on our Installation Guideline and User manual. If cannot, we can send engineer to your factory to guide you do the installation with extra charge, and the transportation, accommodation, translator shall be covered by your side also.
