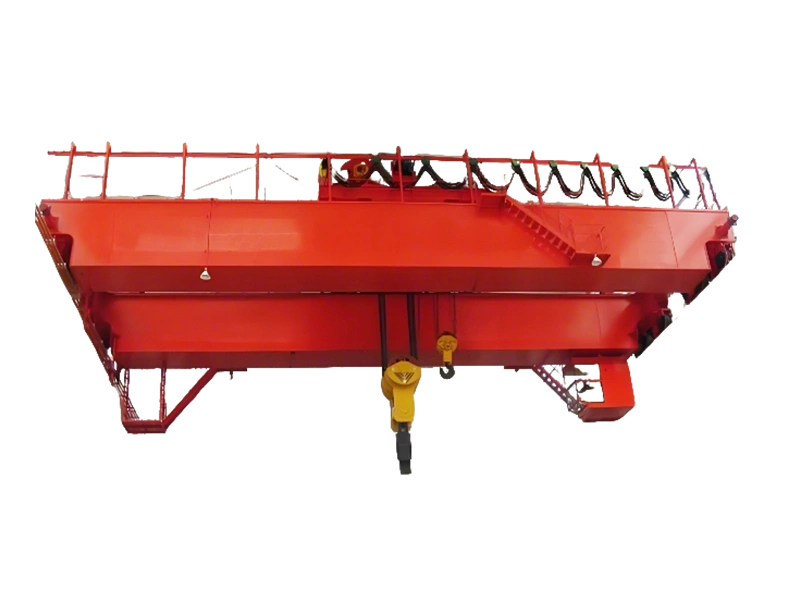

Double Girder Overhead Crane With Hook 150/32~160/32T

17
17

Double Girder Overhead Crane With Hook 150/32~160/32T

Technical Specifications

Lifting capactiy Main hook t 150 160
Auxiliary hook m 32 32
Span 13 16 19 22 25 28 31 13 16 19 22 25 28 31
Lifting Height 22 22
24 24
Working system A5 A5
spend Main hook m/min 3.7 3.5
Auxiliary hook 7.5 7.5
trolley travelling 40 40
crane travelling 68 68
limt
dimenstion
L1 mm 980 980
L2 2500 2500
L 1700 1700
h 1200 1200
h1 50 50
Dimensions H mm 4600 4600
H1 3000 3150 3000 3150
B 9900 9900
K 4600 4600
B1 400 400
F 500 650 500 650
Max wheel load kw 262 283 294 304 312 319 326 272 293 305 315 324 331 338
Span kn 196 196 208 208 216 216 216 196 196 208 208 216 216 216
Steel track QU120 QU120
Power source 380V 50H 3-Phase A.C.380V 50Hz 380V 50H 3-Phase A.C.380V 50H

MORE RELATED QUESTIONS

  • Are you Manufacturer or Trading Company?

    We are an integrated industrial and trade enterprises. We have our own R&D team, factory and marketing department.

  • Which standard of your crane and crane components apply to?

    Our Crane can design and manufacture base on FEM, ISO EN, GB standard.

  • How do you ensure your product quality?

    All our processes strictly adhere to ISO-9001 procedures, which include Material Traceability, ISO WPQR and welder certificate, Measuring Device Calibration, NDT for the welding, and full assembling and load testing before delivery.

  • How can I make payment?

    We accept T/T bank transfer, Paypal.

  • How can I assembly the cranes in my factory?

    We suggest you to recruit a crane service team in local to install the crane base on our Installation Guideline and User manual. If cannot, we can send engineer to your factory to guide you do the installation with extra charge, and the transportation, accommodation, translator shall be covered by your side also.
